GitOps with Feature Branch Workflow

Overview

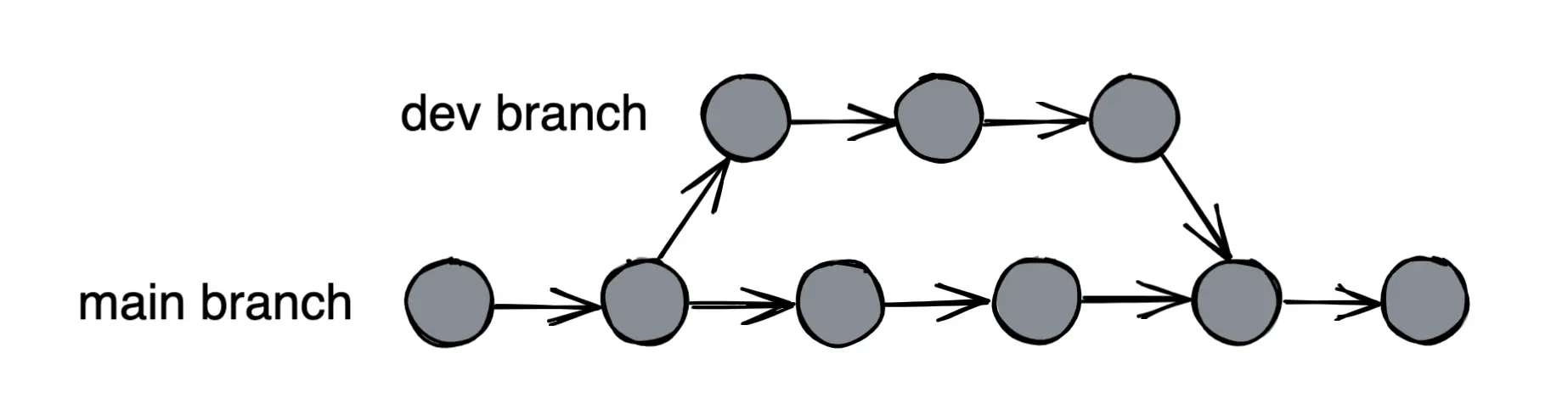

In a Git feature branch workflow, all feature development takes place in a dedicated branch instead of main branch. When the feature development finishes, it will be merged into the main branch. This articles shows you a typical Bytebase setup for teams using one main branch and one dev (feature) branch.

Prerequisites

• You have two branches:

1. One main branch corresponds to the prod envrionment, and it has a db_prod database.
2. One dev branch for the feature work corresponds to the dev environment, and it has a db_dev database.

• You installed Bytebase and have Workspace Owner role.

The Procedure

Step 1 - Configure the workspace

1. Go to Settings > Workspace > Version Control to add a VCS provider.
2. Click Environments and create two environments Dev and Prod. You can configure approval policy as require or skip manual approval.
3. Click Instances > Add Instance to add instances where db_prod and db_dev are located.

Step 2 - Create Dev Project

1. Click Projects > New Project and enter Dev Project in Project Name.
2. In Dev Project, click Transfer in DB and choose db_dev database.
3. Click Version Control on the project tab bar, and choose GitOps workflow and enable GitOps workflow.

Step 3 - Create Prod Project

• Repeat Step 2, but with Prod instead of Dev, e.g. Prod Project instead of Dev Project.

Step 4 - Create SQL migration file

• Name and organize SQL migration files like this.

Final Setup

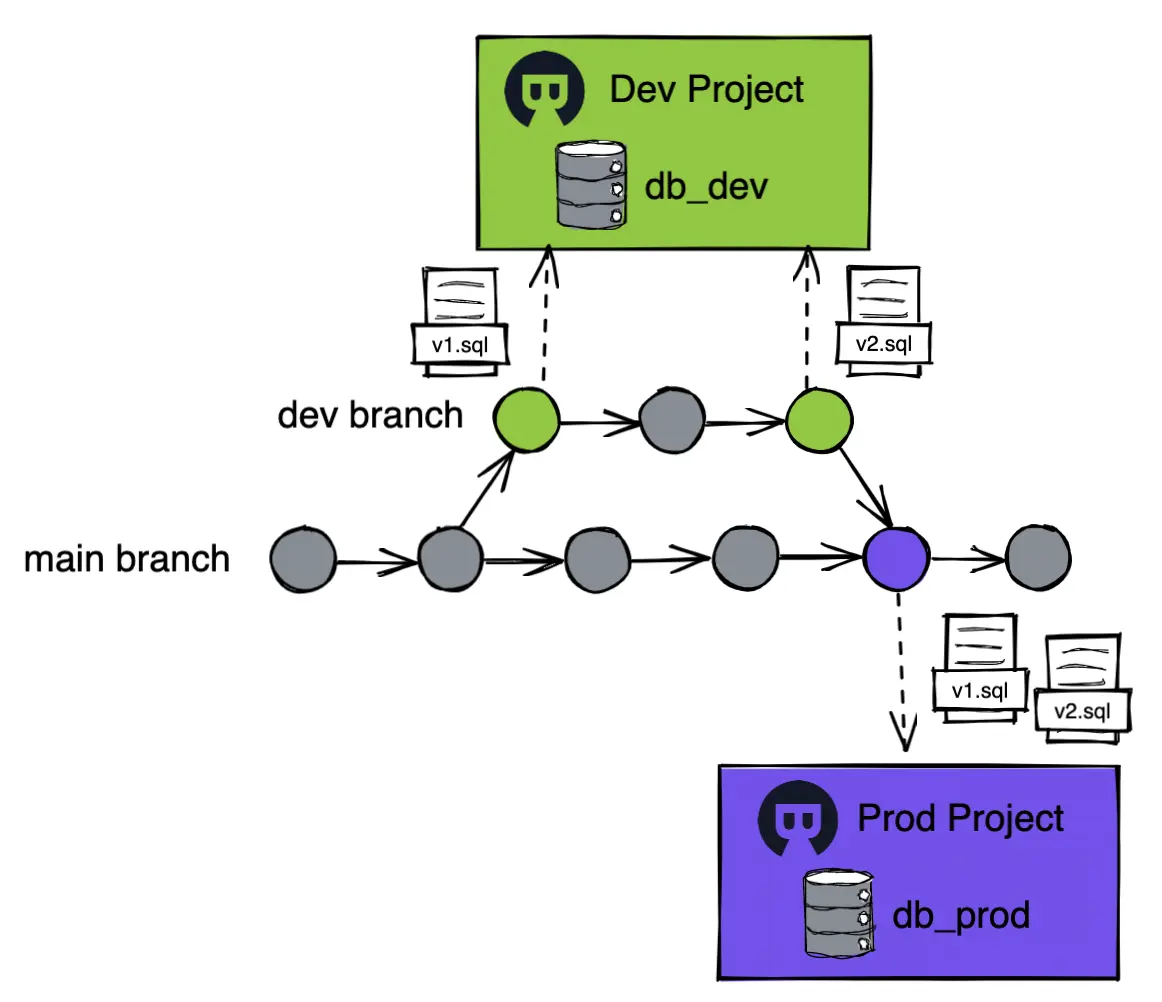

The final setup looks like this:

With this setup,

• When a SQL migration file is committed to the dev branch, Bytebase will create an issue in Dev Project and apply that migration file to db_dev.

• When you merge the dev branch to the main branch with one or more SQL migration file commits, Bytebase will create a separate issue for each SQL migration file in Prod Project and apply the corresponding migration change to db_prod.

info

Bytebase only creates the issue with the migration change. Depending on the environment approval policy, Bytebase will either apply the change immediately to the database or wait for approval.
