Back up Data
Bytebase manages its own data under the --data directory. The data includes:
- Metadata when --pg is not specified.
- Database backups when cloud backup flags is not specified.
info
You should periodically back up the entire --data directory if any data is stored there.
If Bytebase is running and not in the readonly mode, and you want to take the backup, then the underlying data volume must support snapshot feature where the entire directory can take a snapshot at the same time, otherwise it may produce a corrupted backup bundle.
Embedded PostgreSQL Metadata
By default, Bytebase bundles an embedded PostgreSQL instance for storing its own metadata. The metadata is stored under the --data directory. You can back up the --data direcotry or the pgdata subfolder.
External PostgreSQL Metadata
If --pg is specified, the metadata will be stored in the specified external PostgreSQL database. Below shows how to back up and restore the Bytebase metadata, let's assume the metadata is stored in metadb.
Back up the metadata
pg_dump -h <<host>> -p <<port>> -U <<user>> -d metadb > metadb.sqlRestore Option 1 - Restore to the same metadb
Step 1 - Restore metadata to a temporary db
Create a new db metadb_new:
psql -h <<host>> -p <<port>> -U <<user>> metadb -c "CREATE DATABASE metadb_new"Restore metdata to the new db:
psql -h <<host>> -p <<port>> -U <<user>> metadb_new < metadb.sqlStep 2 - Swap the existing metadata db with the temporary db
info
You need to first stop Bytebase otherwise its connection to the metadata db will prevent renaming the database.
Also, you can not rename the connecting database so you need to connect to the PostgreSQL instance using a different database like postgres.
Rename existing metadb to metadb_old:
psql -h <<host>> -p <<port>> -U <<user>> postgres -c "ALTER DATABASE metadb RENAME TO metadb_old"Rename metadb_new to the metadb, which will serve as the new metadata db:
psql -h <<host>> -p <<port>> -U <<user>> postgres -c "ALTER DATABASE metadb_new RENAME TO metadb"Step 3 - Drop the old metadata db
Restart Bytebase and verify the metadata is restored properly. Afterwards, you can drop the old database:
psql -h <<host>> -p <<port>> -U <<user>> postgres -c "DROP DATABASE metadb_old"Restore Option 2 - Restore to a different database metadb2
Step 1 - Modify the dump file
The dump file records the Bytebase metadata schema change history, and it's database specific. So we
need to change the existing record value from metadb to metadb2 first, which means to transfer
the change history to metadb2.

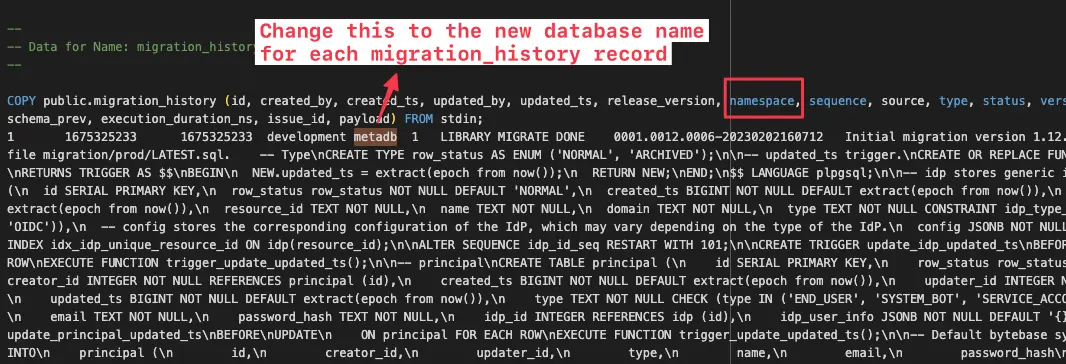

Locate the migration_history table in the dump file, and for each record, find the value metadb
which corresponds to the namespace column, change each occurrence from metadb to metadb2.
Step 2 - Restore metadata to metadb2
Create a new db metadb2:
psql -h <<host>> -p <<port>> -U <<user>> metadb -c "CREATE DATABASE metadb2"Restore metdata to the new db:
psql -h <<host>> -p <<port>> -U <<user>> metadb2 < metadb.sqlStep 3 - Drop the old metadata db
Restart Bytebase and verify the metadata is restored properly. Afterwards, you can drop the old database:
psql -h <<host>> -p <<port>> -U <<user>> postgres -c "DROP DATABASE metadb"Database Backup
Bytebase allows users to take database backups.
-
Local backup:
backupdirectory will be put under the--datadirectory. -
Cloud backup: If Bytebase starts with cloud backup flags, then the backup will be stored in the corresponding cloud storage.
